Product images are for illustrative purposes only and may differ in appearance from the actual item delivered.
Product Description

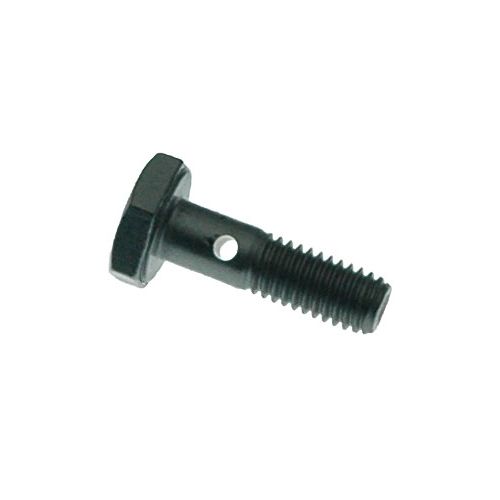

Bolt Style Wire Clamps for Solid Wire Controls
The best for less!
- Many applications: carb heat, cabin air, defrost controls, oxygen control and more
- Unique design to reduce wire stress
- Heat treated stainless steel for wear and corrosion resistance
| Part Number | A - Bolt Dia. (in) | B - Wrench Size (in) | C - Thick (in) | D - Grip Length (in) | E - Hole Position (in) | F - Shank Length (in) | G - Hole Dia. (in) | T - Thread | Application |
|---|---|---|---|---|---|---|---|---|---|
0.188 | 3/8 | 0.125 | 0.250 | 0.183 | 0.653 | 0.073 | 0-32 | Carb heat, starter, mixture, cabin heat, fuel shutoff, strainer drain, defrost, shutter, wastegate, oxygen control, de-ice, heater, airbox, alternate air, flap/elevator, pressure air dump, heat exchanger | |
0.250 | 7/16 | 0.156 | 0.312 | 0.325 | 0.781 | 0.073 | 1/4-28 | Cabin heat, mixture, defrost, cabin heat | |
0.250 | 7/16 | 0.156 | 0.188 | 0.199 | 0.539 | 0.073 | 1/4-28 | Strainer drain, cowl flaps, carb heat, alternate air | |
0.250 | 7/16 | 0.156 | 0.313 | 0.312 | 0.781 | 0.073 | 1/4-28 | Mixture, flap indicator, flap guide, fuel shut-off | |
0.188 | 3/8 | 0.125 | 0.125 | 0.188 | 0.531 | 0.073 | 10-32 | Cabin air, carb heat, starter, airbox, defrost, flap, shutter, oxygen | |
0.250 | 7/16 | 0.156 | 0.188 | 0.355 | 0.656 | 0.073 | 1/4-28 | Mixture, hopper, induction | |
0.188 | 3/8 | 0.125 | 0.250 | 0.192 | 0.656 | 0.076 | 10-32 | Fuel shut-off, alternate air, flap elevator trim | |
0.188 | 3/8 | 0.125 | 0.250 | 0.202 | 0.656 | 0.096 | 10-32 | Fuel shut-off oxygen control | |
0.250 | 7/16 | 0.156 | 0.438 | 0.343 | 0.906 | 0.129 | 1/4-28 | Flap control, flap guide | |
0.188 | 3/8 | 0.125 | 0.125 | 0.204 | 0.477 | 0.079 | 10-32 | Fuel shut-off, heat exchanger | |
0.188 | 3/8 | 0.125 | 0.250 | 0.266 | 0.656 | 0.076 | 10-32 | Mixture, bleed air, fuel selector, flap/elevator | |
0.250 | 7/16 | 0.156 | 0.188 | 0.357 | 0.656 | 0.073 | 1/4-28 | Mixture, cabin heat, pressurization | |
0.250 | 7/16 | 0.156 | 0.313 | 0.271 | 0.781 | 0.073 | 1/4-28 | Mixture, alternate air, bleed air | |
0.188 | 3/8 | 0.125 | 0.125 | 0.132 | 0.531 | 0.082 | 10-32 | Cabin heat, cabin air | |
0.188 | 3/8 | 0.125 | 0.125 | 0.200 | 0.531 | 0.094 | 10-32 | Defroster |
| Weight | 0.004536 |
|---|---|
| Manufacturer | McFarlane Aviation, Inc |
