Wire Clamp, Bolt

SKU

MCS2323-10

Login to see price

Skip to the end of the images gallery

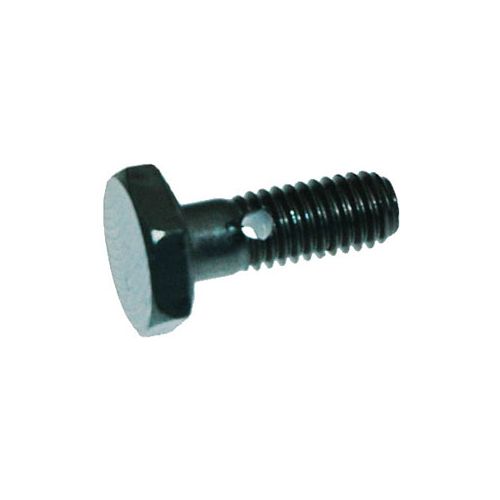

main product photo

Skip to the beginning of the images gallery

Product images are for illustrative purposes only and may differ in appearance from the actual item delivered.

Product Description

Product Description

Bolt Style Wire Clamps for Solid Wire Controls

The best for less!

Many applications: carb heat, cabin air, defrost controls, oxygen control and more
Unique design to reduce wire stress
Heat treated stainless steel for wear and corrosion resistance

Wire Clamp Diagram

Wire Clamp IPC

Part Number	A - Bolt Dia. (in)	B - Wrench Size (in)	C - Thick (in)	D - Grip Length (in)	E - Hole Position (in)	F - Shank Length (in)	G - Hole Dia. (in)	T - Thread	Application
MCS2323-1	0.188	3/8	0.125	0.250	0.183	0.653	0.073	0-32	Carb heat, starter, mixture, cabin heat, fuel shutoff, strainer drain, defrost, shutter, wastegate, oxygen control, de-ice, heater, airbox, alternate air, flap/elevator, pressure air dump, heat exchanger
MCS2323-2	0.250	7/16	0.156	0.312	0.325	0.781	0.073	1/4-28	Cabin heat, mixture, defrost, cabin heat
MCS2323-3	0.250	7/16	0.156	0.188	0.199	0.539	0.073	1/4-28	Strainer drain, cowl flaps, carb heat, alternate air
MCS2323-4	0.250	7/16	0.156	0.313	0.312	0.781	0.073	1/4-28	Mixture, flap indicator, flap guide, fuel shut-off
MCS2323-5	0.188	3/8	0.125	0.125	0.188	0.531	0.073	10-32	Cabin air, carb heat, starter, airbox, defrost, flap, shutter, oxygen
MCS2323-6	0.250	7/16	0.156	0.188	0.355	0.656	0.073	1/4-28	Mixture, hopper, induction
MCS2323-7	0.188	3/8	0.125	0.250	0.192	0.656	0.076	10-32	Fuel shut-off, alternate air, flap elevator trim
MCS2323-8	0.188	3/8	0.125	0.250	0.202	0.656	0.096	10-32	Fuel shut-off oxygen control
MCS2323-9	0.250	7/16	0.156	0.438	0.343	0.906	0.129	1/4-28	Flap control, flap guide
MCS2323-10	0.188	3/8	0.125	0.125	0.204	0.477	0.079	10-32	Fuel shut-off, heat exchanger
MCS2323-11	0.188	3/8	0.125	0.250	0.266	0.656	0.076	10-32	Mixture, bleed air, fuel selector, flap/elevator
MCS2323-12	0.250	7/16	0.156	0.188	0.357	0.656	0.073	1/4-28	Mixture, cabin heat, pressurization
MCS2323-13	0.250	7/16	0.156	0.313	0.271	0.781	0.073	1/4-28	Mixture, alternate air, bleed air
MCS2323-14	0.188	3/8	0.125	0.125	0.132	0.531	0.082	10-32	Cabin heat, cabin air
MCS2323-19	0.188	3/8	0.125	0.125	0.200	0.531	0.094	10-32	Defroster
