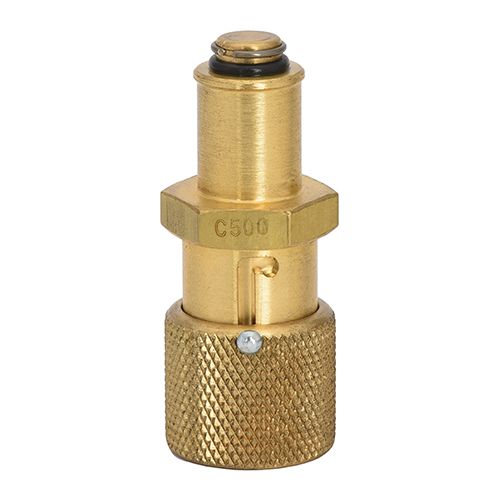

"Valve, Fuel Drain, 1/2"""" Tube"

SKU

C500

Skip to the beginning of the images gallery

Product images are for illustrative purposes only and may differ in appearance from the actual item delivered.

Product Description

Locking	Flush Mounted	Open Action	Use Pin Type Cup	Material	Hose Adapter Size	Approval
Yes	No	Push	Yes	360 Brass	1/2"	FAA-TSO-C76

Used on bladder style wing tanks.

Thread: "UNF" (Fine thread) type are straight, non-sealing threads that rely on an o-ring to provide a seal. "NPT" (Pipe thread) type are tapered thread that seal as they are tightened. Measure the O.D. of the thread on the valve you are replacing and compare to the thread specifications table to determine the correct thread size.
Locking: Valve locks in the open position for easy draining.
Flush mounted: Valve is designed to mount flush with aircraft skin.
Use Pin Type Cup: Pin type cups similar to MCCCA-39680 may be used with indicated valves for sampling fuel.
Open Action: "Spiral" valves require a push and turn action to open. "Push" valves require a push action to open.
Hose Adapter Size: A hose may be attached to the valve for ease of draining fuel. The size is the hose I.D.
