Product images are for illustrative purposes only and may differ in appearance from the actual item delivered.
Product Description

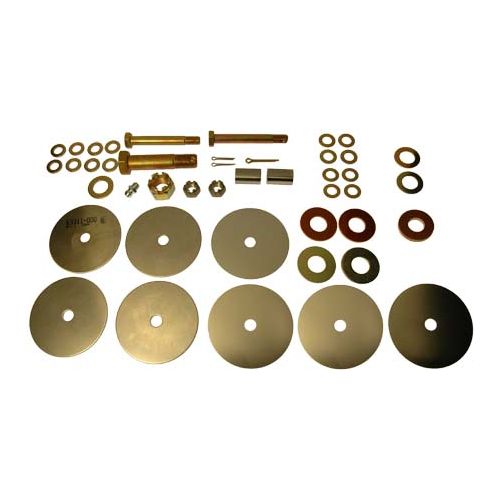

Kit contains:
| 3 Bolts |
| 3 Cotter pins |
| 1 Lubrication fitting |
| 3 Nuts |
| 13 Spacers |
| 21 Washers |
NOTE:
PA-28-161 aircraft, s/n 2816001 thru 2816119 and 28-7816254 thru 28-8616057 use PTL-KT-4 for the main landing gear torque links. Some of these aircraft are fitted with a main gear fairing that requires a bolt, threaded on each end, to secure the lower torque link arm and the fairing. The aircraft serial number does not indicate which bolt is needed. The installer must determine correct bolt, as described below, and order in addition to the PTL-KT-4.
Bolt P/N 37881-002 is 3.96 inches in length and is used with fairings made from cycolac (plastic).
Bolt P/N 37881-003 is 4.22 inches long as used with fairings made from fiberglass.
Kit PTL-KT-4 does contain a standard bolt use on aircraft without a main landing gear fairing.
Bolts are available from McFarlane Aviation, Inc.
Torque Link Repair Kits for Piper Aircraft
Prevents shimmy by removing looseness in the torque links
- Convenient kits replace all common wear torque link components
- Fits most prop driven Piper aircraft
- Contains all FAA approved parts and standard hardware
- Save time and money! No more research and ordering of individual parts
Can You Stop Nose Gear Shimmy? by Dave McFarlane
| Weight | 0.411091 |
|---|---|
| Manufacturer | McFarlane Aviation, Inc |
