Product images are for illustrative purposes only and may differ in appearance from the actual item delivered.
Product Description

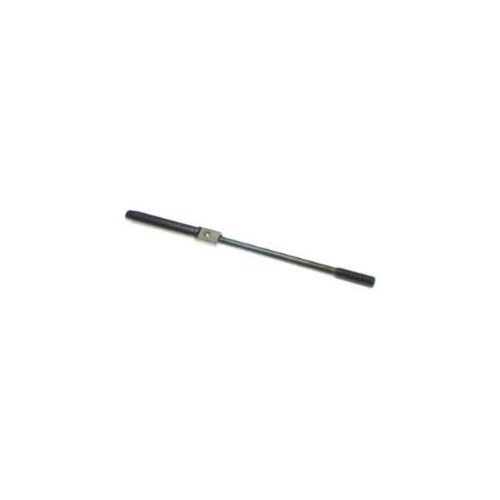

Terminal, Wire Rope, Stud
Part Number and Thread | Cable Diameter Nominal | Minimum Breaking Strength | Thread B UN-3A UNF-3A | A | C | E | F | L | N | V | W | Y | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Right Hand | Left Hand | ||||||||||||
1/16" | 480 lbs. | #6-40 | 0.160" | 0.092" | 0.156" | 0.188" | 3.491" | 0.078" | 0.063" | 1.174" | 0.375" | ||
1/16" | 480 lbs. | #6-40 | 0.160" | 0.092" | 0.156" | 0.188" | 2.616" | 0.078" | 0.063" | 1.174" | 0.375" | ||
3/32" | 920 lbs. | #10-32 | 0.218" | 0.133" | 0.187" | 0.250" | 3.738" | 0.109" | 0.063" | 1.411" | 0.500" | ||
3/32" | 920 lbs. | #10-32 | 0.218" | 0.133" | 0.187" | 0.250" | 2.863" | 0.109" | 0.063" | 1.411" | 0.500" | ||
1/8" | 2,000 lbs. | 1/4-28 | 0.250" | 0.195" | 0.250" | 0.313" | 4.020" | 0.141" | 0.098" | 1.682" | 0.563" | ||
1/8" | 2,000 lbs. | 1/4-28 | 0.250" | 0.195" | 0.250" | 0.313" | 3.145" | 0.141" | 0.098" | 1.682" | 0.563" | ||
5/32" | 2,800 lbs. | 1/4-28 | 0.297" | 0.195" | 0.250" | 0.313" | 4.314" | 0.172" | 0.098" | 1.958" | 0.625" | ||
5/32" | 2,800 lbs. | 1/4-28 | 0.297" | 0.195" | 0.250" | 0.313" | 3.439" | 0.172" | 0.098" | 1.958" | 0.625" | ||
3/16" | 4,200 lbs. | 5/16-24 | 0.359" | 0.245" | 0.312" | 0.375" | 4.612" | 0.203" | 0.098" | 2.237" | 0.750" | ||
3/16" | 4,200 lbs. | 5/16-24 | 0.359" | 0.245" | 0.312" | 0.375" | 3.737" | 0.203" | 0.098" | 2.237" | 0.750" | ||
1/4" | 7,000 lbs. | 3/8-24 | 0.494" | 0.306" | 0.438" | 0.500" | 5.218" | 0.265" | 0.098" | 2.784" | 0.875" | ||
- | 5/16" | 9,800 lbs. | 1/2-20 | 0.635" | 0.406" | 0.625" | 0.688" | 5.875" | 0.328" | 0.098" | 3.326" | 1.000" | |
- | 3/8" | 14,400 lbs. | 9/16-18 | 0.703" | 0.476" | 0.688" | 0.750" | 6.608" | 0.404" | 0.098" | 3.828" | 1.125" | |
| Weight | 0.010433 |
|---|---|
| Manufacturer | Hardware |
