Product images are for illustrative purposes only and may differ in appearance from the actual item delivered.
Product Description

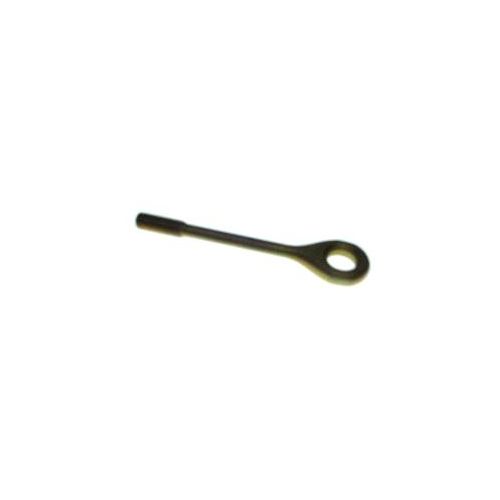

Eye End for Wire Rope, Turnbuckle
(*) Indicates Corrosion Resistant Stainless Steel
Part Number and Thread | Wire Rope Diameter Nominal | Minimum Breaking Strength | Thread T UNF-3A | A | C | J | S | Y | Z | |
|---|---|---|---|---|---|---|---|---|---|---|
Right Hand | Left Hand | |||||||||
| MS21255-2RS | MS21255-2LS | 1/16 | 800 lbs. | #6-40 | 0.188" | 0.094" | 0.125" | 0.375" | 0.375" | 1.500" |
| MS21255-2RL | MS21255-2LL | 1/16 | 800 lbs. | #6-40 | 0.188" | 0.094" | 0.125" | 0.375" | 0.375" | 2.375" |
| MS21255-3RS | MS21255-3LS | 3/32 | 1,600 lbs. | #10-32 | 0.219" | 0.133" | 0.188" | 0.500" | 0.500" | 1.625" |
| MS21255-3RL | MS21255-3LL | 3/32 | 1,600 lbs. | #10-32 | 0.219" | 0.133" | 0.188" | 0.500" | 0.500" | 2.500" |
| MS21255-5RS | MS21255-5LS | 5/32 | 3,200 lbs. | 1/4-28 | 0.281" | 0.189" | 0.219" | 0.625" | 0.625" | 1.750" |
| MS21255-5RL | MS21255-5LL | 5/32 | 3,200 lbs. | 1/4-28 | 0.281" | 0.189" | 0.219" | 0.625" | 0.625" | 2.625" |
| MS21255-6LS | 3/16 | 4,600 lbs. | 5/16-24 | 0.313" | 0.243" | 0.281" | 0.688" | 0.750" | 1.875" | |
| Weight | 0.002722 |
|---|---|
| Manufacturer | Hardware |
