Product images are for illustrative purposes only and may differ in appearance from the actual item delivered.
Product Description

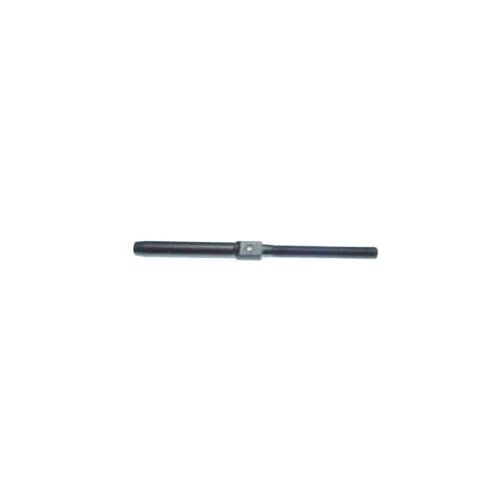

Terminal, Wire Rope, Stud
Stainless Steel
Part Number and Thread | Cable Diameter Nominal | Minimum Breaking Strength | Thread B UN-3A UNF-3A | A | C | E | F | L | N | V | W | Y | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Left Hand | Right Hand | ||||||||||||
1/16" | 480 lbs. | #6-40 | 0.160" | 0.121" | 0.156" | 0.188" | 2.473" | 0.078" | 0.063" | 1.174" | 1.045" | ||
3/32" | 920 lbs. | #10-32 | 0.218" | 0.169" | 0.187" | 0.250" | 2.879" | 0.109" | 0.063" | 1.411" | 1.204" | ||
1/8" | 2,000 lbs. | 1/4-28 | 0.250" | 0.226" | 0.250" | 0.313" | 3.333" | 0.141" | 0.063" | 1.682" | 1.376" | ||
5/32" | 2,800 lbs. | 1/4-28 | 0.297" | 0.226" | 0.250" | 0.313" | 3.627" | 0.172" | 0.063" | 1.958" | 1.376" | ||
3/16" | 4,200 lbs. | 5/16-24 | 0.359" | 0.285" | 0.312" | 0.375" | 4.002" | 0.203" | 0.098" | 2.237" | 1.453" | ||
- | 1/4" | 7,000 lbs. | 3/8-24 | 0.494" | 0.347" | 0.438" | 0.500" | 4.937" | 0.265" | 0.098" | 2.784" | 1.750" | |
| Weight | 0.004536 |
|---|---|
| Manufacturer | Hardware |
