Product images are for illustrative purposes only and may differ in appearance from the actual item delivered.
Product Description

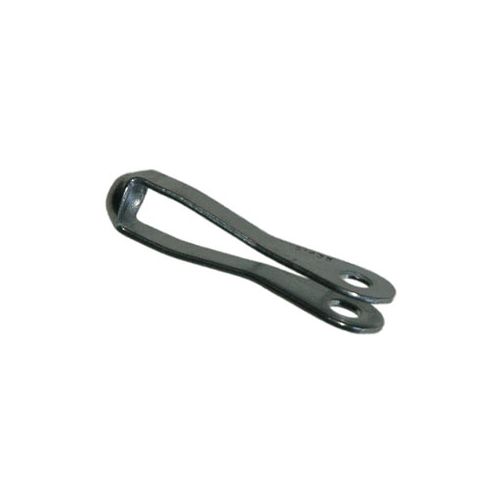

Strap, Fork, Terminal
For use with MS20664 Ball (Single Shank)
Part Number, Strap Eye End | Cable Diameter | For use with Ball (Single Shank) | A (Ref) | C | G Radius | H Diameter | J | L Minimum | Weight (Approximate) |
|---|---|---|---|---|---|---|---|---|---|
0.063" | 1.094" 1.031" | 0.192" 0.188" | 0.193" 0.183" | 0.380" 0.370" | 0.161" 0.151" | 0.203" | 0.007 lbs. | ||
0.094" | 1.531" 1.469" | 0.192" 0.188" | 0.224" 0.214" | 0.443" 0.433" | 0.224" 0.214" | 0.266" | 0.015 lbs. | ||
0.125" | 1.656" 1.594" | 0.192" 0.188" | 0.255" 0.245" | 0.505" 0.495" | 0.255" 0.245" | 0.328" | 0.034 lbs. | ||
0.156" | 2.000" 1.937" | 0.254" 0.250" | 0.286" 0.276" | 0.568" 0.558" | 0.286" 0.276" | 0.406" | 0.046 lbs. | ||
0.188" | 2.219" 2.156" | 0.317" 0.313" | 0.349" 0.339" | 0.693" 0.683" | 0.318" 0.308" | 0.469" | 0.079 lbs. |
| Weight | 0.014969 |
|---|---|
| Manufacturer | Hardware |
