Terminal (Fork)

SKU

MS21252-6RL

Product images are for illustrative purposes only and may differ in appearance from the actual item delivered.

Product Description

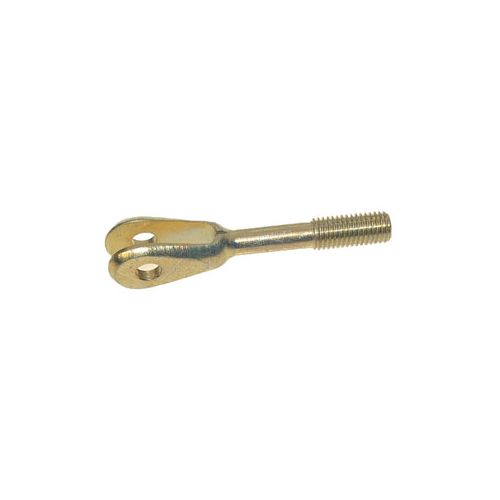

MS21252 Clevis End, Turnbuckle

Stainless Steel

(*) Indicates Corrosion Resistant Stainless Steel

Part Number and Thread		Cable Diameter Nominal	Minimum Breaking Strength	Thread T UNF-3A	C	D	F	G	H	Y	Z
Left Hand	Right Hand
MS21252-2LS	MS21252-2RS *MS21252C2RS	1/16"	800 lbs.	#6-40	0.094	0.190	0.250	0.109	0.375	0.375	1.500
MS21252-3LL	MS21252-3RL	3/32"	1,600 lbs.	#10-32	0.133	0.190	0.319	0.156	0.375	0.500	2.500
MS21252-3LS	MS21252-3RS *MS21252C3RS	3/32"	1,600 lbs.	#10-32	0.133	0.190	0.319	0.156	0.375	0.500	1.625
MS21252-4LL	MS21252-4RL	1/8"	2,200 lbs.	1/4-28	0.189	0.190	0.383	0.195	0.531	0.563	2.734
MS21252-4LS *MS21252C4LS	MS21252-4RS *MS21252C4RS	1/8"	2,200 lbs.	1/4-28	0.189	0.190	0.383	0.195	0.531	0.563	1.844
MS21252-5LL *MS21252C5LL	MS21252-5RL *MS21252C5RL	5/32"	3,200 lbs.	1/4-28	0.189	0.250	0.452	0.218	0.531	0.625	2.734
MS21252-5LS	MS21252-5RS *MS21252C5RS	5/32"	3,200 lbs.	1/4-28	0.189	0.250	0.452	0.218	0.531	0.625	1.844
MS21252-6LL	MS21252-6RL	3/16"	4,600 lbs.	5/16-24	0.243	0.313	0.547	0.250	0.656	0.750	2.906
MS21252-6LS	MS21252-6RS	3/16"	4,600 lbs.	5/16-24	0.243	0.313	0.547	0.250	0.656	0.750	2.031

More Information
Weight	0.019051
