Product images are for illustrative purposes only and may differ in appearance from the actual item delivered.
Product Description

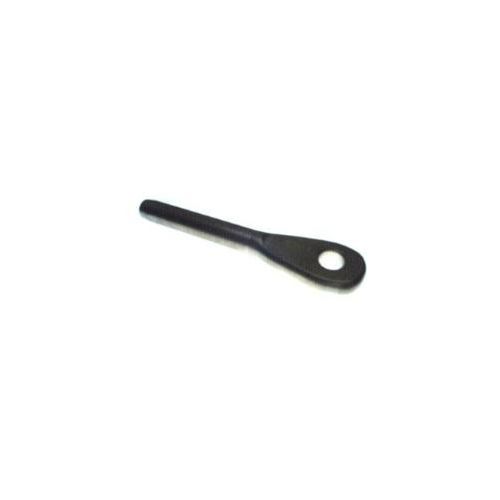

Terminal, Wire Rope, Swaging, Eye End
Stainless Steel
Part Number and Thread | Wire Rope Diameter Nominal | Minimum Breaking Strength | A | C | D | J | L | N | T | U |
|---|---|---|---|---|---|---|---|---|---|---|
1/16" | 480 lbs. | 0.160" | 0.523" | 0.190" | 0.088" | 1.631" | 0.078" | 0.136" | 0.359" | |
3/32" | 920 lbs. | 0.218" | 0.707" | 0.190" | 0.103" | 2.043" | 0.109" | 0.190" | 0.438" | |
1/8" | 2,000 lbs. | 0.250" | 0.738" | 0.190" | 0.190" | 2.337" | 0.141" | 0.219" | 0.500" | |
5/32" | 2,800 lbs. | 0.297" | 0.831" | 0.250" | 0.197" | 2.684" | 0.172" | 0.250" | 0.640" | |
3/16" | 4,200 lbs. | 0.359" | 0.903" | 0.313" | 0.255" | 3.019" | 0.203" | 0.313" | 0.781" | |
7/32" | 5,600 lbs. | 0.427" | 1.007" | 0.313" | 0.291" | 3.382" | 0.234" | 0.375" | 0.813" | |
1/4" | 7,000 lbs. | 0.494" | 1.133" | 0.375" | 0.307" | 3.763" | 0.265" | 0.438" | 0.968" |
| Weight | 0.041277 |
|---|---|
| Manufacturer | Hardware |
