Product images are for illustrative purposes only and may differ in appearance from the actual item delivered.
Product Description

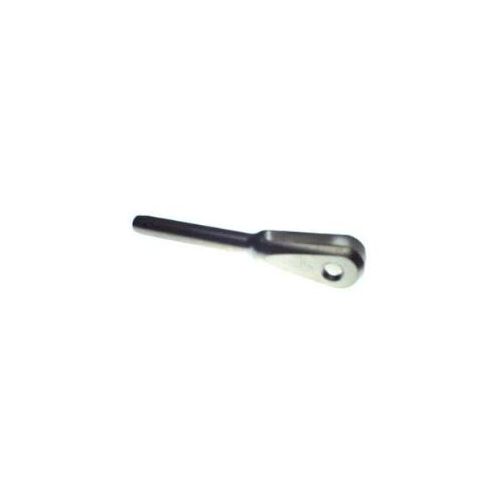

Terminal, Wire Rope, Swaging, Fork End
Stainless Steel
Dash Number | Cable Diameter Nominal | Minimum Breaking Strength | A | D | F | G | H | L | N | U |
|---|---|---|---|---|---|---|---|---|---|---|
1/16" | 480 lbs. | 0.160" | 0.190" | 0.218" | 0.093" | 0.500" | 1.572" | 0.078" | 0.344" | |
3/32" | 920 lbs. | 0.218" | 0.190" | 0.254" | 0.108" | 0.670" | 1.945" | 0.109" | 0.438" | |
1/8" | 2,000 lbs. | 0.250" | 0.190" | 0.383" | 0.195" | 0.735" | 2.352" | 0.141" | 0.547" | |
5/32" | 2,800 lbs. | 0.297" | 0.250" | 0.406" | 0.202" | 0.800" | 2.655" | 0.172" | 0.688" | |
3/16" | 4,200 lbs. | 0.359" | 0.313" | 0.543" | 0.260" | 0.880" | 3.071" | 0.203" | 0.781" | |
7/32" | 5,600 lbs. | 0.427" | 0.313" | 0.625" | 0.296" | 0.970" | 3.440" | 0.234" | 0.906" | |
1/4" | 7,000 lbs. | 0.494" | 0.375" | 0.688" | 0.313" | 1.070" | 3.806" | 0.265" | 0.969" |
| Weight | 0.015876 |
|---|---|
| Manufacturer | Hardware |
