Seat Spring, Adjustment

Seat Adjustment Springs for Piper Aircraft

Replacement springs just got more affordable!

• Direct replacement - no conversion kit required
• One required per bucket seat
• Avoid downtime and expense of repeated overhauls

Replacements for both styles now available:

Gas Spring Style - P/N MC587-404

• Replaces Piper P/N 587-404 or 89178-010*
• Originals were manufactured by Stabilus Bloc-O-Lift or Gas Springs Corp Easy Lift
• M10x1 metric thread (~0.39 inch diameter)
• Adapter P/N MC37902-06 also available (threads on end of the Gas Spring Style MC587-404)

*Some Piper parts catalogs do not list part number 587-404 separately, but list an assembly part number of 89178-010 instead. McFarlane P/N MC587-404 replaces the spring component of this assembly and adapter P/N MC37902-06 replaces the block.

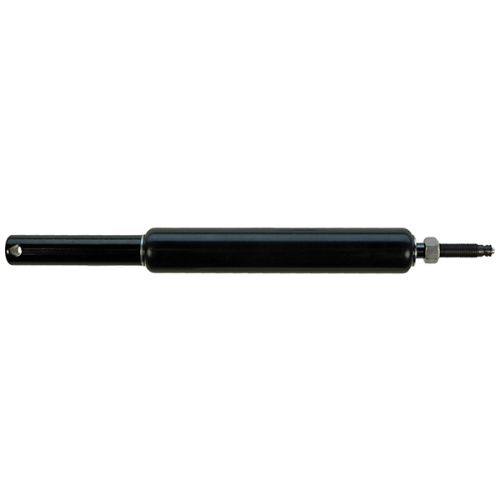

Coil Spring/Hydraulic Style - P/N MC555-692

• McFarlane replaces the old coil spring/hydraulic style with a gas spring
• Replaces Piper P/N 76445-000 or 555-692
• Originals were manufactured by P. L. Porter Hydrolok
• 3/8-24 UNF thread

Maintenance Tip: Aircraft make, model and serial number are not sufficient to ensure the correct replacement spring as many aircraft may have been originally equipped with either one or retrofitted with a conversion kit. If the spring you are replacing is marked with a brand name (e.g. P. L. Porter or Stabilus) the correct replacement is readily identified. The coil spring/hydraulic style are also identifiable by a 1-1/4" diameter visible coil spring. The thread may also be measured to verify the correct identification. Original Gas Spring Style Original Coil Spring/Hydraulic Style
