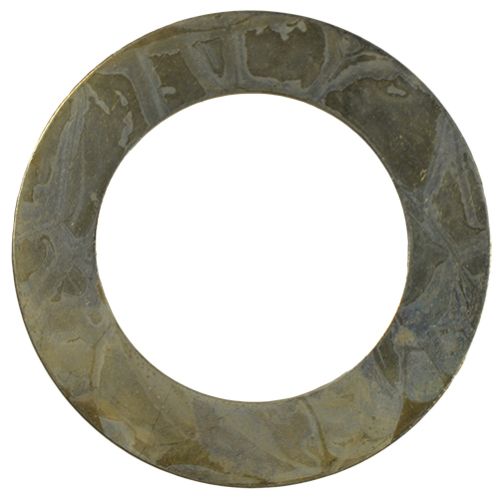

Ring, Grease Seal, Flat

SKU

MC153-30013

Product images are for illustrative purposes only and may differ in appearance from the actual item delivered.

Product Description

Wheel Grease Seals and Kits

Finally a low cost alternative!

FAA-PMA approved for Cessna & Piper aircraft with Cleveland, and McCauley wheels.

Sold individually or as convenient kits
Each kit contains everything required to service one wheel: grease seal rings, plates, snap rings and felts; even screws and washers when required
We have done the research so you don’t have to!
Hard to find parts in stock
Save $$$

Future approvals will include Air Tractor, Beechcraft, Cirrus, Diamond, Mooney, and more!

Reference Documents:

Grease Seal Rings and Plates:
P/N	ID	OD	Thickness	Fig
MC153-00300	1-33/64	2-1/2	0.034	A
MC153-00400	1-45/64	2-5/8	1/32	A
153-00500	1-3/4	2-3/4*	5/32	B
MC153-00800	1-53/64	2-23/64	1/32	A
MC153-01000	2-1/16	2-3/4*	1/8	B
MC153-01500	2-1/16	2-5/8	13/64	C
MC153-30013	1-11/16	2-39/64	1/32	A
153-30014	2-1/16	2-5/8	11/64	C
MC153-30015	1-17/32	2-35/64	1/32	A
MC156-00100	1-3/4	3-22/32	1/8	D
OD measurement does not* include mounting tabs

Grease Felt Seals:	ID	OD	Thickness	Snap Rings:	ID	OD	Thickness
MC154-01400	1-3/4	2-5/8	1/8	MC155-00100	9/64	2-3/4	1/32
MC154-00300	1-5/8	2-5/8	1/8	MC155-00200	9/64	2-1/2	0.025
MC154-00600	1-3/4	2-13/32	1/8	MC155-11800	5/32	2-1/2	1/32
MC154-00900	2-1/8	2-7/16	1/8	MC155-11900	5/32	2-3/4	1/32
MC154-01300	2-1/8	2-1/2	3/16
MC154-30010	2-1/8	2-17/32	1/8
Dimensions are approximate and for identification only. Dimensions are in inches.

More Information
Weight	0.014969
Manufacturer	McFarlane Aviation, Inc
