Light, Taxi

SKU
01-1030-4314
LIGHT, Taxi, SunSpot 36-4314, 12V
In stock
Add to Wish List

Product images are for illustrative purposes only and may differ in appearance from the actual item delivered.

Product Description

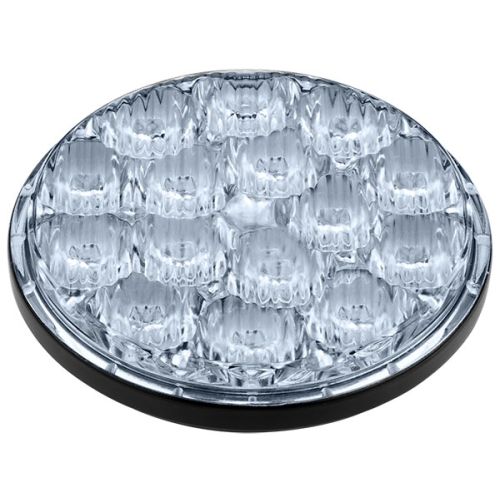

SunSpot™ 36-4000 Series Taxi Lights

Higher color temperature - White

Technical Specifications:

  • Power Consumption: 95W
  • Voltage: 12V
  • Lumens: 11,000
  • Candela: 50,000
  • Beam Profile: 20' x 40'
  • Weight: 11.5 oz
  • Dimensions: 4.4" x 4.4" x 2.1"

SunSpot 36-4000 Series Taxi Lights are designed as an LED drop-in replacement for existing legacy lights. The -H version (P/N 01-1030-4314-H) includes an integrated Pulse or WigWag feature that helps significantly increase recognition in broad daylight and night operations. These features also help avoid midair collisions and bird strikes, while reducing the load on the electrical system by 50%. The SunSpot 36-4000 Series Taxi Lights will fit all PAR36 configurations.

Sunspot FAA-PMA/STC Landing and Taxi Lights

Drop-in replacement for PAR36, 46, 27 and 64

Almost twice the light for 1/3 the power!

Available as a drop-in replacement for PAR36, PAR46, PAR27, and PAR64 configurations with several options that are FAA/PMA/STC certified. The AeroLEDs Sunspot Series LED Landing and Taxi Lights consume less power, output more lumens (total light output) and are not affected by vibration compared to incandescent bulbs. These attributes make the SunSpot ideal for use in Experimental, Certified, Commercial, ARFF, and Military aircraft. The HX version includes an integrated Pulse or WigWag feature that helps greatly increase recognition in broad daylight as well as night operation to help avoid midair collisions. Additionally, while in the recognition mode, SunSpot’s draw half the current. The SunSpot series lights are designed to be mounted in the wingtips, leading edge, cowling, or on the landing gear.

Pulse Recognition Mode.

AeroLED lights with pulse mode (or wig-wag mode) greatly improve safety by alternately blinking the left then right light once per second. This dramatically increases your aircraft visibility to prevent both air and ground collisions. At least one 36HX or 46HX series light must be installed to enable pulse mode.

DescriptionP/NCertificationWattsVoltageLumensWeightDimensions
Landing
SunSpot 36 Equinox01-1030-LT-12FAA-PMA/STC1001211,00011.06 oz4.4" x 4.4" x 2.1"
36-4313 Landing01-1030-4313FAA-PMA/STC951211,00011.5 oz4.4" x 4.4" x 2.1"
36-4313 HX Landing with Pulse01-1030-4313-HFAA-PMA/STC951211,00011.5 oz4.4" x 4.4" x 2.1"
36LXi Landing01-1030-L-AFAA-PMA/STC459-30.3 VDC5,00011.2 oz4.4" x 4.4" x 2.0"
SunSpot 36 Equinox01-1030-LT-24FAA-PMA/STC1002411,00011.06 oz4.4" x 4.4" x 2.1"
36-4596 Landing01-1030-4596FAA-PMA/STC1002411,00013.5 oz4.4" x 4.4" x 1.9"
36-4596 HX Landing with Pulse01-1030-4596-HFAA-PMA/STC1002411,00011.5 oz4.4" x 4.4" x 2.1"
46HX Landing with Pulse01-2130-HXFAA-PMA/STC859-30.3 VDC9,25020 oz5.6" x 5.6" x 1.7"
46LX Landing01-2130-LXFAA-PMA/STC859-30.3 VDC9,25020 oz5.6" x 5.6" x 1.7"
SunSpot 46 Equinox01-2230-LT-12FAA-PMA/STC1451415,00022 oz5.6" x 5.6" x 1.9"
Sunspot 46-4000 Series01-2230-4522FAA-PMA/STC1401415,40020 oz5.6" x 5.6" x 1.9"
Sunspot 46-4000 Series with Pulse01-2230-4522-HFAA-PMA/STC1401415,40020 oz5.6" x 5.6" x 1.9"
46-4580 Landing01-2230-4580FAA-PMA/STC1702419,25020 oz5.6" x 5.6" x 1.7"
46-4580 HX Landing with Pulse01-2230-4580-HFAA-PMA/STC1702419,25020 oz5.6" x 5.6" x 1.9"
SunSpot PCx900-01-100-AFAA-PMA/STC1002411,00011.5 oz4.4" x 4.4" x 2.25"
SunSpot Landing, PAR6401-2250-4559FAA-PMA/STC2002422,00048 oz8" x 8" x 2"
SunSpot 36-4000 Series01-1030-4509FAA-PMA/STC75146,50011.2 oz4.4" x 4.4" x 2.0"
SunSpot 36-4000 Series with Pulse01-1030-4509-HFAA-PMA/STC75146,50011.02 oz4.4" x 4.4" x 2.0"
SunSpot 36-4000 Series

01-1030-4591

FAA-PMA/STC75286,50011.02 oz4.4" x 4.4" x 2.0"
SunSpot 36-4000 Series with Pulse01-1030-4591-HFAA-PMA/STC75286,50011.02 oz4.4" x 4.4" x 2.0"
Taxi
SunSpot 36 Equinox01-1030-LT-12FAA-PMA/STC1001211,00011.06 oz4.4" x 4.4" x 2.1"
36-4314 Taxi01-1030-4314FAA-PMA/STC951211,00011.5 oz4.4" x 4.4" x 2.1"
36-4314 HX Taxi with Pulse01-1030-4314-HFAA-PMA/STC951211,00011.5 oz4.4" x 4.4" x 2.1"
36HX Taxi with Pulse01-1030-H-BFAA-PMA/STC459-30.3 VDC4,95010.1 oz4.4" x 4.4" x 1.9"
36LX Taxi01-1030-L-BFAA-PMA/STC459-30.3 VDC4,95010.1 oz4.4" x 4.4" x 1.9"
SunSpot 36 Equinox01-1030-LT-24FAA-PMA/STC1002411,00011.06 oz4.4" x 4.4" x 2.1"
36-4587 Taxi01-1030-4587FAA-PMA/STC1002411,00011.5 oz4.4" x 4.4" x 2.1"
36-4587 HX Taxi with Pulse01-1030-4587-HFAA-PMA/STC1002411,00011.5 oz4.4" x 4.4" x 2.1"
SunSpot 46 Equinox01-2230-LT-12FAA-PMA/STC1351415,00022 oz5.6" x 5.6" x 1.9"
46LX Taxi01-2130-LXFAA-PMA/STC709-30.3 VDC7,70020 oz5.6" x 5.6" x 1.7"
46-4554 Taxi01-2230-4554FAA-PMA/STC1702419,25020 oz5.6" x 5.6" x 1.7"
46-4554 HX Taxi with Pulse01-2230-4554-HFAA-PMA/STC1702419,25020 oz5.6" x 5.6" x 1.9"
SunSpot PCx900-01-100-CFAA-PMA/STC1002411,00011.5 oz4.4" x 4.4" x 2.25"
Connector Kit
Molex Connector KitKIT-0040

AeroLEDs offer high efficiency, direct replacement LED lighting for hundreds of aircraft. AeroLEDs are light weight, shock and vibration resistant, and have low drag. LED lighting easily lasts over 50,000 hours of continuous operation with no reduction by on/off cycles, with up to 80% reduced power consumption. The built-in Pulse Mode and synchronization blink the light on and off at a 1Hz rate when power is applied to the Pulse Mode power wire. Higher color temperature provides superior visibility and clarity.

Increased Safety - AeroLEDs lights allow you to comply with the latest FAA recommendations (Operation Lights On) regarding extended use of taxi, landing and anti-collision lights without fear of reduced light performance or life. They all feature optimized light color (6500k sunlight equivalent) for proven superior air-to-air recognition. The landing lights also feature a pulsed recognition light mode.

Reduced Power Consumption - High efficiency LED lights use less than 1/3 the power of halogen bulbs. They significantly reduce the load on the electrical system, and they will not dim due to low voltage typical of low RPM final approaches when you need them most!

Longer Life - Zero Maintenance - All AeroLEDs products are designed to be a "lifetime buy." They last over 50,000 hours when properly installed and do not degrade with on/off cycles. They are extremely rugged and hardened against all kinds of electrical damage, shock and vibration.

Pulse Recognition Mode - AeroLEDs lights with pulse mode (or wig-wag mode) greatly improve safety by alternately blinking the left then right light once per second. This dramatically increases your aircraft visibility to prevent both air and ground collisions. At least one 36HX or 46HX series light must be installed to enable pulse mode.

More Information
Weight 0.472643
Manufacturer AeroLEDs - WHELEN® Aerospace
