Product images are for illustrative purposes only and may differ in appearance from the actual item delivered.
Product Description

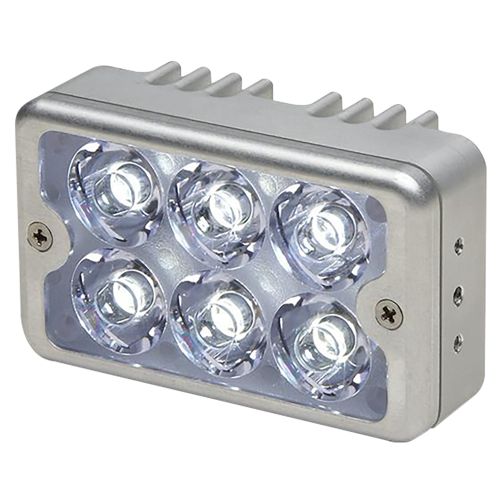

71125 Series LED Recognition Lights
The 71125 Series LED Recognition Lights are designed to provide supplemental lighting for a wide variety of aircraft applications. It provides all of the advantages of LEDs as a light source, no EMI/RFI, low current draw, low heat, and long life. Perfect for vibration prone areas. The unit ships with flying leads. Several different beam spreads are available.
Note: Brackets and mounting hardware not included.
Technical Specifications:
- Power Consumption:
- 0.9 Amps at 14 volts
- 0.45 amps at 28 volts
- Lens: Clear polycarbonate
- LED Color: Aviation White
- Weight: 0.3 pounds (136gm)
- Height: 1.95" (50mm) x Width: 3.25" (83mm) x Depth: 1.25" (32mm)
Drawing Number: 71125
| Voltage | Part Number | Color | Beam Spread |
| 14 | 01-0771125-10 | Aviation White | 10° |
| 14 | 01-0771125-11 | Aviation White | 20° |
| 14 | 01-0771125-12 | Aviation White | 90° |
| 28 | 01-0771125-20 | Aviation White | 10° |
| 28 | 01-0771125-21 | Aviation White | 20° |
| 28 | 01-0771125-22 | Aviation White | 90° |
| 28 | 01-0771125-23 | Aviation White | 30° |
Wing Tip Bracket
FAA-STC for Beech Bonanzas and Barons with wrap-around style wing tip lenses
Easily install Whelen lighting without the hassle of major modifications!
P/N GAL01-5720-001
- Avoid expensive flashtubes for your strobes or obsolete replacements by having the option to install upgraded lights!
- Save time and $$$
- 5-year warranty
Wing Tip Bracket
FAA-STC for Beech Bonanzas and Barons with wrap-around style wing tip lenses
Easily install Whelen lighting without the hassle of major modifications!
P/N GAL01-5720-001
- Avoid expensive flashtubes for your strobes or obsolete replacements by having the option to install upgraded lights!
- Save time and $$$
- 5-year warranty
Whelen Aerospace Technologies is the global leader in high-end lighting products for the aerospace industry. Experienced staff designs, engineers, and manufactures high-quality products that provide safety, visibility, and recognition for aircraft across all platforms. Design engineers work closely with OEM and service provider networks to design high-performance products that enhance the pilot experience, as well as provide safety of flight.
As an FAA-approved production holder, Whelen Aerospace Technologies owns hundreds of STCs for aircraft landing, taxi, anti-collision and position lights. In-house composite shop produces a wide variety of STC and PMA approved speed modifications for a number of general aviation aircraft.
| Weight | 0.226796 |
|---|---|
| Manufacturer | WHELEN® Aerospace Technologies |
