Product Description

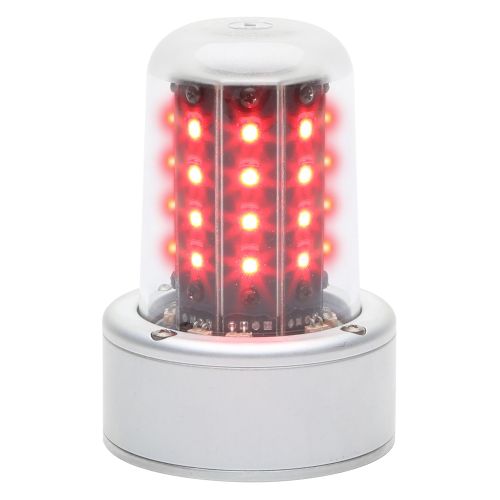

71080 Series LED Beacons
The 71080 series LED beacons are self-contained LED Anti-Collision lights (ref. Class I - 150 effective candlepower). They are designed to replace existing beacons utilizing a 2.5” diameter footprint. They can also replace remote mounted strobe lights (ref. Whelen A470 series) allowing for removal of the strobe power supply.
Internal mounting plate provided with choice of mounting holes to retrofit most existing mounting patterns.
Tech Specifications:
- Current Draw:
- 14VDC: 0.90 amps avg., 4.0 amps peak at 0.30 seconds
- 28VDC: 0.45 amps avg., 2.0 amps peak at 0.30 seconds
- LED Color: Aviation Red
- Weight: 1.8 pounds (816gm)
- Exposed Height: 2.70" (69mm)
- Lens Color: Clear glass
| Voltage | Color | Part Number | Base/Mount |
| 28 | Red | 01-0771080-01 | 2.60" Mount |
| 28 | Red | 01-0771080-04 | 5-Hole Mount |
| 28 | Red | 01-0771080-05 | 3.75" Adapter |
| 28 | Red | 01-0771080-06 | 1.750" Mount Pattern |
| 28 | Red | 01-0771080-07 | 3.75" Adapter |
| 28 | Red | 01-0771080-08 | 5-Hole Mount |
| 28 | Red | 01-0771080-14 | 5-Hole, Lower Mount |
| 28 | Red | 01-0771080-15 | 3.75" Adapter, Lower Mount |
| 28 | Red | 01-0771080-17 | 3.75" Adapter, Lower Mount |
| 28 | Red | 01-0771080-18 | 5-Hole, Lower Mount |
| 28 | Red | 01-0771080-30 | Airbus Helicopter |
| 14 | Red | 01-0771080-51 | 2.60" Mount |
| 14 | Red | 01-0771080-55 | 3.75" Adapter, Flying Leads |
Wing Tip Bracket
FAA-STC for Beech Bonanzas and Barons with wrap-around style wing tip lenses
Easily install Whelen lighting without the hassle of major modifications!
P/N GAL01-5720-001
- Avoid expensive flashtubes for your strobes or obsolete replacements by having the option to install upgraded lights!
- Save time and $$$
- 5-year warranty
Whelen Aerospace Technologies is the global leader in high-end lighting products for the aerospace industry. Experienced staff designs, engineers, and manufactures high-quality products that provide safety, visibility, and recognition for aircraft across all platforms. Design engineers work closely with OEM and service provider networks to design high-performance products that enhance the pilot experience, as well as provide safety of flight.
As an FAA-approved production holder, Whelen Aerospace Technologies owns hundreds of STCs for aircraft landing, taxi, anti-collision and position lights. In-house composite shop produces a wide variety of STC and PMA approved speed modifications for a number of general aviation aircraft.
| Weight | 0.453592 |
|---|---|
| Manufacturer | WHELEN® Aerospace Technologies |
