Indicator Dual

SKU

46000-7

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product images are for illustrative purposes only and may differ in appearance from the actual item delivered.

Product Description

Product Description

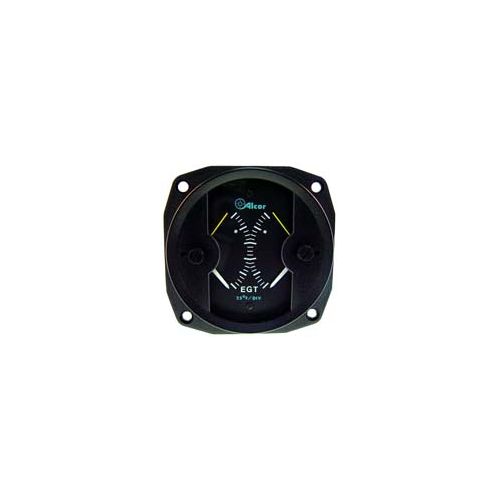

Alcor EGT Gauges

Save on fuel costs with precision leaning!

Quick visual reference to peak EGT
Set peak reference with easy in-flight calibration - Special calibration screwdriver included!
Single 2 1/4" and dual 3 1/8" models include an adjustable reference needle
Two marking options:
1. Relative to peak (lean to peak temperature indicated with an * - must be calibrated in flight)
2. True temperature from 1200-1700 deg F in 25 deg increments

Save with complete kits!

P/N	Description	Compatible Thermocouple Type	Size	True Temp or Relative to Peak	Calibration *
46000-1	EGT/EGT Dual Gauge	K - Red and Yellow	3 1/8"	TT	1650F @ 8.2 Ohms (264") **
46000-3	EGT/EGT Dual Gauge	K - Red and Yellow	3 1/8"	TT	1550F (100") Front 3.6 Ohms, Rear 7.8 Ohms (250")
46000-7	EGT/EGT Dual Gauge	K - Red and Yellow	3 1/8"	TT	1650F @ 7.6 Ohms (240") **
46115	EGT/EGT Dual Gauge w/Light 24V	K - Red and Yellow	3 1/8"	RTP	1600F @ 7.44 Ohms ***
46125	EGT/EGT Dual Gauge	K - Red and Yellow	2 1/4"	RTP	1600F @ 7.44 Ohms ***
46148	EGT Gauge w/Light 12 V	K - Red and Yellow	2 1/4"	RTP	1600F @ 3.63 Ohms ***
46149	EGT Gauge w/Light 24V	K - Red and Yellow	2 1/4"	RTP	1600F @ 3.63 Ohms ***
46150	EGT Gauge	K - Red and Yellow	2 1/4"	RTP	1600F @ 3.63 Ohms ***
46155	EGT/EGT Dual Gauge	K - Red and Yellow	3 1/8"	RTP	1600F @ 7.44 Ohms ***
46162	EGT Gauge w/Green Arc	K - Red and Yellow	2 1/4"	TT	1650F @ 3.3 Ohms (90") **
46164	EGT Gauge	K - Red and Yellow	2 1/4"	TT	1650F @ 3.3 Ohms (90") **
46188-3	EGT Dual Gauge w/Light	K - Red and Yellow	2 1/4"	RTP	1600F @ 7.44 Ohms ***
46244	EGT Gauge w/Green Arc	K - Red and Yellow	2 1/4"	TT	1650F @ 7.6 Ohms (240") **

* Factory calibrated at the specified temperature for the specified total probe and lead resistance. Calibration temperature also indicates the location of the * or red line.
** Factory calibrated for leads of the indicated length but may be recalibrated for different lead lengths either at the factory or with an Alcal 2000 or Alcal 2000+ System.
*** Factory calibrated for the specified total lead and probe resistance, but may be easily recalibrated in flight.

ALCOR Instruments and Probes

Don't waste your money on cheap instruments and probes. There is a big difference!

Increase engine life and enhance safety through proper monitoring

Faster responding probes than low dollar alternatives
Temperature compensated gauges for accuracy all year round at any altitude
Single gauges monitor one cylinder, dual gauges for twin engine aircraft monitor one cylinder per engine. Add a selector switch to make an economical full engine analyzer. Lighted gauges and custom dials also available!

Alcor: A name you can trust

Over 50 years experience - Designed, manufactured and supported in the USA
Generous warranty: 3 years for gauges, 5 years for grounded probes, 1 year for ungrounded probes
FAA-PMA/STC approved for all aircraft with reciprocating engines

Simple installation
