Housing Assembly, Seat Roller

SKU

MC1414104-25B

Skip to the beginning of the images gallery

Product images are for illustrative purposes only and may differ in appearance from the actual item delivered.

Product Description

Note: P/N MC1414104-25B consists of the housing and the metal bracket (P/N MC1414104-8) that guides the locking pin riveted together. If you do not require the housing and bracket riveted together, housing P/N MC1414104-25 and bracket P/N MC1414104-8 are sold separately.

Seat Roller Housings for Cessna Aircraft
Save $$$

Anodized for improved wear and corrosion resistance
Precision machined with perfected dimension for smooth installation and operation
FAA-PMA direct replacement
Replace out-of-spec housings as required by FAA AD 2011-10-09
Instructions for Continued Airworthiness
Alternate Means of Compliance

Need help selecting the correct housing for your seat?
With over two dozen part numbers and may different seat options, this can be very challenging. Only McFarlane has a convenient flowchart to make it easy!

Try the flowchart now!

Housing/Bracket Assemblies

Save time and money with housing/bracket assemblies. Most housings with a locking pin hole are available with or without the MC1414104-8 bracket. Just add a "B" suffix to the housing part number to buy the complete assembly.

McFarlane highly recommends buying complete assemblies. The bracket rivet spacing is very close making riveting difficult without special tooling.

Bracket P/N MC1414104-8 also available separately.

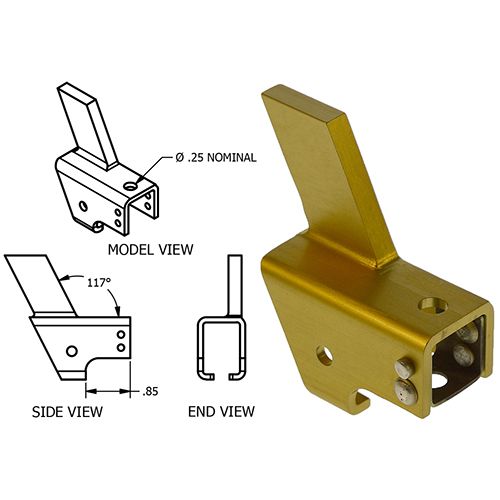

Typical seat roller housing, bracket, and housing/bracket assembly:
