Product Description

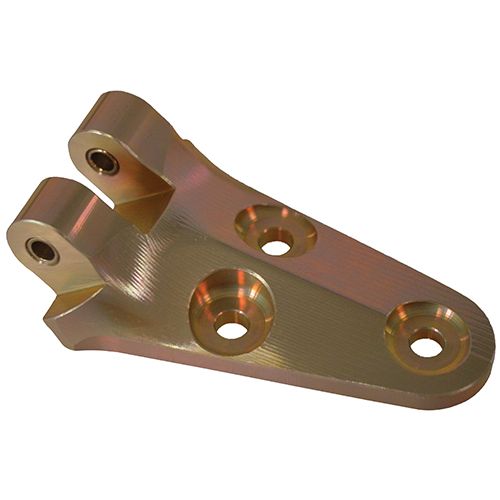

Door Hinges for Cessna Caravan
Door hinges have bushings for longer wear!
As the original equipment hinge halves wear and the aircraft door starts to sag, Cessna Service Bulletin CAB96-2 allows a one time repair through the use of an oversize door hinge pin. When the hinge again becomes worn and the door sags, the hinge halves must be replaced and an original size hinge pin re-installed.
- Anodized for corrosion resistance
- Precision fit
- Available with or without bushing
- Replaceable bushings allow extended service life!
| Bushed Hinge P/N | Standard Hinge P/N | Location | OEM P/N | |
| Cargo Door | Crew Door | |||
| AF2617015-17B | AF2617015-17 | RH Lower Forward | 2617015-1 or -17 | |
| AF2617015-18B | AF2617015-18 | Lower Forward | LH Lower Forward | 2617015-2 or -18 |
| AF2617015-19B | AF2617015-19 | RH Upper Forward | 2617015-11 or -19 | |
| AF2617015-20B | AF2617015-20 | Upper Forward | 2617015-4 or -20 | |
| AF2617015-21B | AF2617015-21 | Lower, Lower Aft | LH Lower Aft | 2617015-13 or -21 |
| AF2617015-22B | AF2617015-22 | LH Upper Forward | 2617015-12 or -22 | |
| AF2617015-23B | AF2617015-23 | Upper, Upper Aft | LH Upper Aft | 2617015-15 or -23 |
| AF2617015-24B | AF2617015-24 | RH Lower Aft | 2617015-14 or -24 | |
| AF2617015-26B | AF2617015-26 | RH Upper Aft | 2617015-16 or -26 | |
| Bushing P/N | ||||
| AF2617015-025 (short), AF2617015-049 (long) | ||||
| Weight | 0.082191 |
|---|---|
| Manufacturer | AIRFORMS Inc |
