Fuel Gasket Kit, Piper

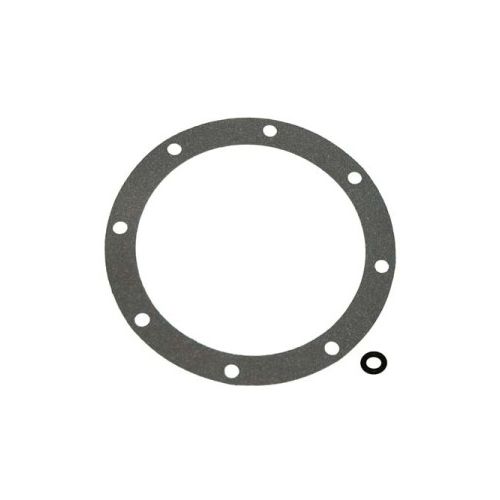

This kit contains one O-ring and one fuel strainer gasket.

Fuel Bowl Gasket and O-Rings
FSP-KT-3 replaces P/N 751-871 upper gasket and MS29513-008 (supersedes Piper P/Ns 755-919, 485-331, and 485-332) lower gasket seal O-ring used on most PA24, PA28-235, PA30, PA32 and PA39 series aircraft. However, some PA28-235 and PA32 series aircraft use a newer style fuel strainer that use a MS29513-043 (supersedes Piper P/Ns 762-503 and 483-330) O-ring for an upper seal instead of the 751-871 gasket. These aircraft must use P/N FSP-KT-4. Kits contain FAA-PMA gaskets and standard O-rings. These kits include the correct O-rings per Piper Service Bulletin 1198A.

--- Gasket P/N CA751-871 or      O-ring P/N MS29513-043 --- O-ring P/N MS29513-008
