Product images are for illustrative purposes only and may differ in appearance from the actual item delivered.
Product Description

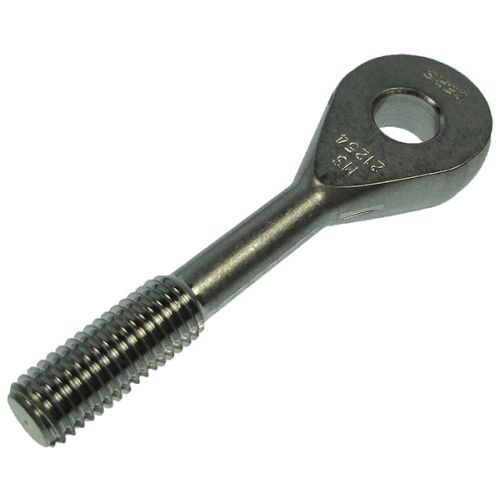

Eye End for Pin, Turnbuckle
(*) Indicates Corrosion Resistant Stainless Steel
Part Number and Thread | Wire Rope Diameter Nominal | Minimum Breaking Strength | Thread T UNF-3A | C | D | J | Y | S | Z | |
|---|---|---|---|---|---|---|---|---|---|---|
Right Hand | Left Hand | |||||||||
1/16" | 800 lbs. | #6-40 | 0.094" | 0.190" | 0.125" | 0.375" | 0.375" | 1.500" | ||
1/16" | 800 lbs. | #6-40 | 0.094" | 0.190" | 0.125" | 0.375" | 0.375" | 2.375" | ||
3/32" | 1,600 lbs. | #10-32 | 0.133" | 0.190" | 0.188" | 0.500" | 0.500" | 1.625" | ||
3/32" | 1,600 lbs. | #10-32 | 0.133" | 0.190" | 0.188" | 0.500" | 0.500" | 2.500" | ||
5/32" | 3,200 lbs. | 1/4-28 | 0.189" | 0.250" | 0.219" | 0.625" | 0.625" | 1.750" | ||
5/32" | 3,200 lbs. | 1/4-28 | 0.189" | 0.250" | 0.219" | 0.625" | 0.625" | 2.625" | ||
3/16" | 4,600 | 5/16-24 | 0.243" | 0.313" | 0.281" | 0.750" | 0.688" | 1.875" | ||
3/16" | 4,600 | 5/16-24 | 0.243" | 0.313" | 0.281" | 0.750" | 0.688" | 2.750" | ||
| *MS21254C8RL | *MS21254C8LL | 1/4" | 8,000 | 3/8-24 | 0.306" | 0.375" | 0.328" | 0.875" | 0.875" | 2.875" |
| *MS21254C9RL | *MS21254C9LL | 9/32" | 12,500 | 7/16-20 | 0.362" | 0.438" | 0.375" | 1.000" | 1.063" | 3.375" |
| *MS21254C10RL | *MS21254C10LL | 5/16" | 17,500 | 1/2-20 | 0.425" | 0.500" | 0.469" | 1.000" | 1.188" | 3.625" |
| Weight | 0.014969 |
|---|---|
| Manufacturer | Hardware |
