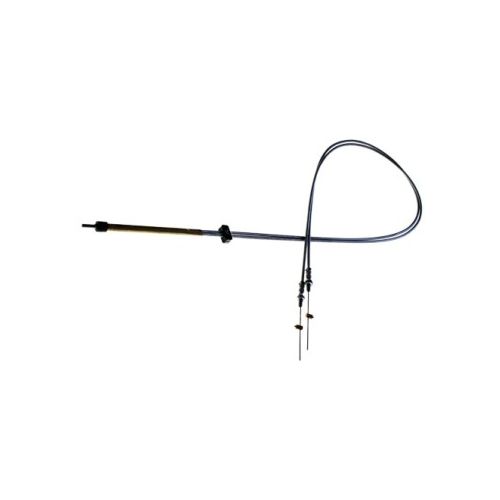

Control, Quadrant, Dual, 6 Ft

Quadrant Style Throttle Controls for Dual Carburetor 912/914 Series Rotax Engines
Innovative design allows a neat, clean installation without a clunky splitter box

These controls feature the same high quality construction and smooth operation as our popular MCT100D panel mount controls, but they are designed for use with a quadrant.

• Quality stainless steel construction
• High temperature Teflon lined conduit for smooth, consistent control
  (Cheapy controls with poly liners will not tolerate engine temperatures)
• Available in 4, 6, 8, 12 foot and custom lengths
  • May be trimmed to length
• Convenient dual conduit clamp for simple mounting
• Versatile threaded conduit terminals for easy adjustment (M6x1-6g x 1 inch thread)
• Adjustable cable stops to limit travel
• Viton boot to dampen vibration and seal out dust on the quadrant end
• Manufactured to the same quality standards as McFarlane's FAA-PMA controls

Includes throttle hardware kit P/N 6408 with lightweight throttle return springs P/N 7140 to prevent throttle creep.

Specifications:

• Slip Fit Conduit Terminals: 2 each with M6x1-6g x 1.00 inch thread
• Conduit: 0.188 inch OD Teflon lined wound conduit
• Inner Wire: Heavy duty 0.062 inch diameter, 1x7 stainless steel twisted wire per MIL-DTL-87161
• Travel (stroke): 4 inch maximum
• Design Work Loads: Pull: 25 lbs maximum (not designed for push loads)
• Operating Temperature: -65 to 450 deg F
• Pushrod Thread (quadrant end): 10-32 UNF x 0.65"
• See McFarlane Dual Quadrant Controls for further specifications.

Order part number: MCQ100DLLL, where LLL is the the length of the control in inches.

These controls are not for use on certified aircraft, or for flight controls or flight control trim tabs.
