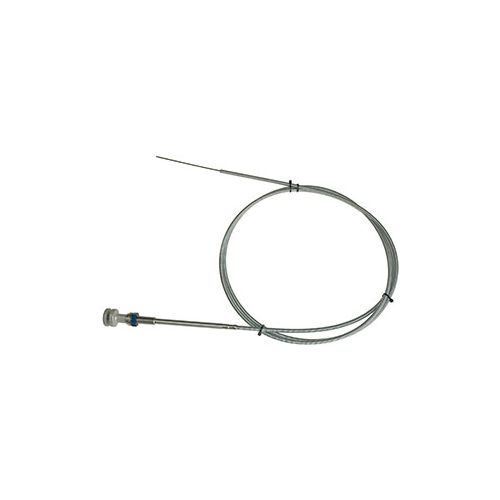

Control, Clear, 12 Ft, Push-To-Unlock

MC6150 Universal Push-to-Unlock Controls

Perfect for homebuilt or custom projects

• Quality stainless steel construction with bright powder coated aluminum knobs
• High temperature Teflon lined conduit for smooth, consistent control
  (Cheapy controls with poly liners will not tolerate engine temperatures)
• Heavy duty for strength and long life
• Available in 4, 6, 8, 10, 12 foot and custom lengths
  • May be trimmed to length
• Round knob
  • Red, black or blue powder coated aluminum, or clear (silver) anodized aluminum
  • Chrome plated brass (designed to match vintage controls)

Specifications:

• Conduit:  0.24 inch OD Teflon lined wound conduit
• Inner wire:  0.071 inch diameter music wire
• Travel (stroke):  3 inch maximum
• Maximum work loads:  25 lbs (Pull), ~10 lbs* (Push)
• Minimum locking force:  15 lbs
• Operating temp:  -65 to 450 deg F **

* Max push load dependent on wire size, length of trimmed wire (unsupported by conduit), geometry of wire rigging, and configuration of actuator

** Operating temperature of knob/guide tube assembly: -65 to 250 deg F

Custom Engraved Knobs:

Custom laser marking of the knobs is available for $25.00 per knob. Receive a $15.00 discount for each additional knob with the same design. Please call Randy at 866-920-2741 ext. 289, or email him at customparts@mcfarlaneaviation.com for details.

Engraving Request Form

These controls are not for use on certified aircraft, or for use for flight controls or flight control trim tabs.
