Control, Chrome, 8 Ft, Push-To-Unlock

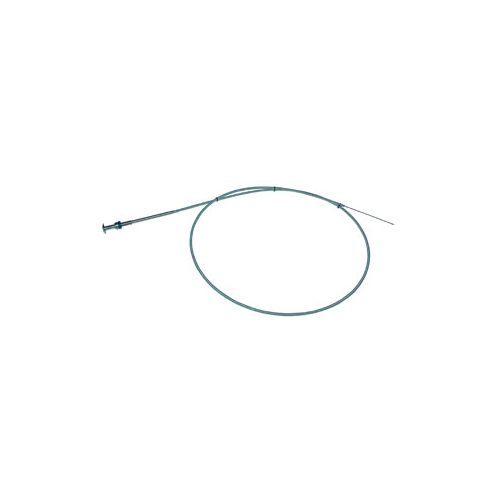

MC6150 Universal Push-to-Unlock Controls

Designed to aesthetically match vintage controls of yesterday

• Quality stainless steel construction
• High temperature Teflon lined conduit for smooth, consistent control
  • Cheapy controls with poly liners will not tolerate engine temperatures
• Heavy duty for strength and long life
• Available in 4, 6, 8, 10 and 12 foot lengths
  • May be trimmed to length
• Round chrome plated brass knob
  • Custom engraving is not available for chrome knobs

Specifications:

• Conduit:  0.24 inch OD Teflon lined wound conduit
• Inner wire:  0.071 inch diameter music wire
• Travel (stroke):  3 inch maximum
• Maximum work loads:  25 lbs (Pull), ~10 lbs* (Push)
• Minimum locking force:  15 lbs
• Operating temp:  -65 to 450 deg F **

* Max push load dependent on wire size, length of trimmed wire (unsupported by conduit), geometry of wire rigging, and configuration of actuator

** Operating temperature of knob/guide tube assembly: -65 to 250 deg F

These controls are not for use on certified aircraft, or for use for flight controls or flight control trim tabs.
