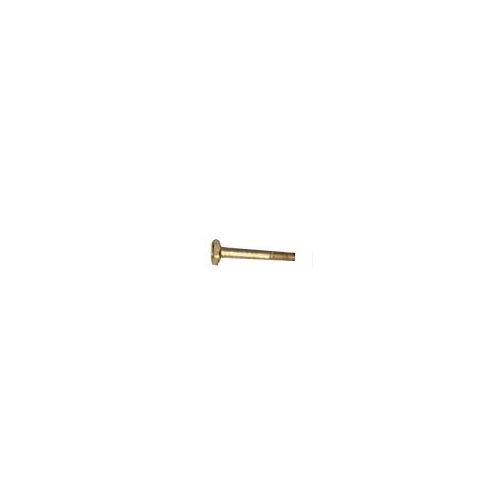

Product images are for illustrative purposes only and may differ in appearance from the actual item delivered.
Product Description
P/N | Thread Size | NSN | Dia. Max | Dia. Min | Length | Grip | Thread Length | Locking Mech. | Material | Grade | Finish | Weight (lb) |
| AN3-11 | 10-32 UNF-3A | N/A | 0.189 | 0.186 | 1.156 | 0.75 | 0.406 | Drilled Shank | Alloy Steel* | 4037 or 8740 | Cadmium Plated* | 0.0122 |
| AN3H11A | 10-32 UNF-3A | N/A | 0.189 | 0.186 | 1.156 | 0.75 | 0.406 | Drilled Head | Alloy Steel* | 4037 or 8740 | Cadmium Plated* | 0.01222 |
| AN3-11A | 10-32 UNF-3A | N/A | 0.189 | 0.186 | 1.156 | 0.75 | 0.406 | None | Alloy Steel* | 4037 or 8740 | Cadmium Plated* | 0.0124 |
*Cadmium Plated, AMS-QQ-P-416, Type II, Class 2
**Passivation per AMS2700
AN Bolts from Airfasco
- In stock, ready to ship!
- Save $$$
For all AN3 through AN20 options, see below table and key for hardware that McFarlane carries. Use the key for help with selection of part numbers.
- No “A” = Drilled Shank (AN3-3)
A = Undrilled Shank (AN3-3A)
H = Drilled Head (AN3H3)
C = Stainless Steel (AN3C5)
| Partial P/N | Wrench Size |
| AN3 | 3/8" |
| AN4 | 7/16" |
| AN5 | 1/2" |
| AN6 | 9/16" |
| Weight | 0.004536 |
|---|---|
| Manufacturer | Hardware |
