Product images are for illustrative purposes only and may differ in appearance from the actual item delivered.
Product Description

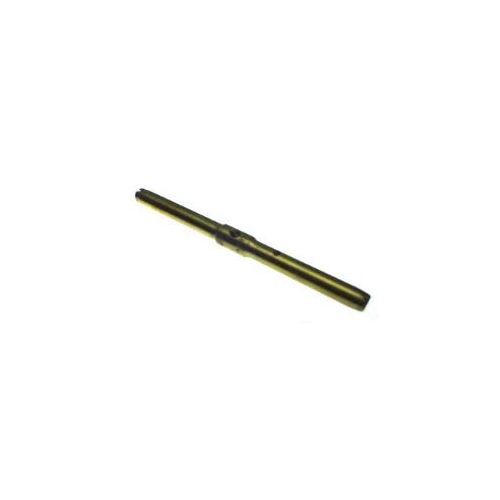

Barrel, Locking Clip, Turnbuckle
Part Number and Thread | Cable Diameter Nominal | Minimum Breaking Strength | Thread T UNF-3A | L | B | D | E | P | ApplicableLocking Clip | |
|---|---|---|---|---|---|---|---|---|---|---|
Steel | Brass | |||||||||
- | 1/16" | 800 lbs. | #6-40 | 2.250" | 0.250" | 0.219" | 0.188" | 0.125" | ||
- | 1/16" | 800 lbs. | #6-40 | 4.000" | 0.250" | 0.219" | 0.188" | 0.125" | ||
- | 3/32" | 1,600 lbs. | #10-32 | 2.250" | 0.344" | 0.281" | 0.250" | 0.125" | ||
- | 3/32" | 1,600 lbs. | #10-32 | 4.000" | 0.344" | 0.281" | 0.250" | 0.125" | ||
5/32" | 3,200 lbs. | 1/4-28 | 2.250" | 0.438" | 0.391" | 0.328" | 0.125" | |||
5/32" | 3,200 lbs. | 1/4-28 | 4.000" | 0.438" | 0.391" | 0.328" | 0.125" | |||
- | 3/16" | 4,600 lbs. | 5/16-24 | 2.250" | 0.500" | 0.438" | 0.406" | 0.125" | ||
- | 3/16" | 4,600 lbs. | 5/16-24 | 4.000" | 0.500" | 0.438" | 0.406" | 0.125" | ||
| Weight | 0.022226 |
|---|---|
| Manufacturer | Hardware |
