Product images are for illustrative purposes only and may differ in appearance from the actual item delivered.
Product Description
QPL Listed: QPL-781 Qualification Letter

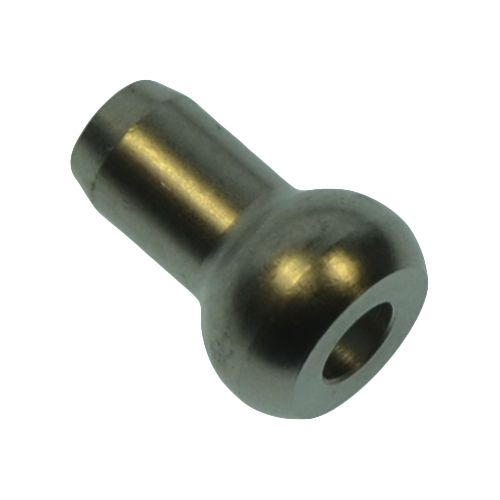

Ball End, Wire Rope, Swaging, Single Shank
Dash Number | Wire Rope Diameter Nominal | Minimum Breaking Strength | A | B | D | E Radius Reference | L | N |
|---|---|---|---|---|---|---|---|---|
1/16" | 480 lbs. | 0.132" | 0.212" | 0.114" | 0.082" | 0.268" | 0.073" | |
3/32" | 920 lbs. | 0.168" | 0.282" | 0.152" | 0.110" | 0.384" | 0.104" | |
1/8" | 2,000 lbs. | 0.223" | 0.350" | 0.189" | 0.137" | 0.500" | 0.139" | |
5/32" | 2,800 lbs. | 0.259" | 0.424" | 0.227" | 0.165" | 0.616" | 0.169" | |
3/16" | 4,200 lbs. | 0.298" | 0.492" | 0.264" | 0.192" | 0.730" | 0.201" | |
1/4" | 7,000 lbs. | 0.406" | 0.629" | 0.339" | 0.247" | 0.962" | 0.264" | |
5/16" | 9,800 lbs. | 0.480" | 0.768" | 0.414" | 0.302" | 1.193" | 0.328" |
| Weight | 0.004536 |
|---|---|
| Manufacturer | McFarlane Aviation, Inc |
