Product images are for illustrative purposes only and may differ in appearance from the actual item delivered.
Product Description
- QPL Listed: QPL-781 Qualification Letter

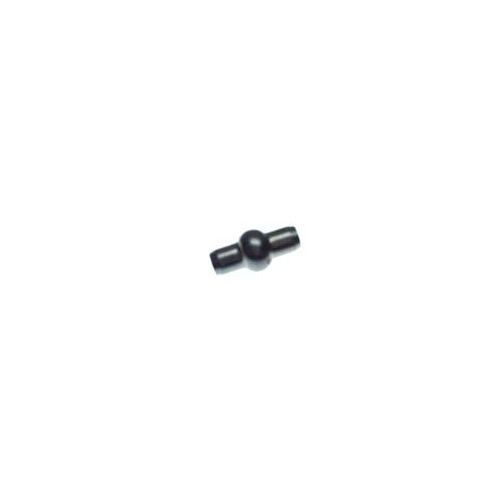

Ball End, Wire Rope, Swaging, Double Shank
Dash Number | Wire Rope Diameter Nominal | Minimum Breaking Strength | A | B | D | E Radius Ref. | L | N |
|---|---|---|---|---|---|---|---|---|
1/16" | 480 lbs. | 0.127" | 0.207" | 0.114" | 0.082" | 0.362" | 0.073" | |
3/32" | 920 lbs. | 0.163" | 0.277" | 0.152" | 0.110" | 0.525" | 0.104" | |
1/8" | 2,000 lbs. | 0.218" | 0.345" | 0.189" | 0.137" | 0.688" | 0.139" | |
5/32" | 2,800 lbs. | 0.254" | 0.419" | 0.227" | 0.165" | 0.850" | 0.169" | |
3/16" | 4,200 lbs. | 0.293" | 0.487" | 0.264" | 0.192" | 1.012" | 0.201" |
| Weight | 0.000454 |
|---|---|
| Manufacturer | Hardware |
